Fire Resistance Polycarbonate Plastic Panels , Translucent Polycarbonate Sheet

Fire Resistance Polycarbonate Plastic Panels , Translucent Polycarbonate Sheet
Fire Resistance Polycarbonate Plastic Panels , Translucent Polycarbonate Sheet

Large Image :  Fire Resistance Polycarbonate Plastic Panels , Translucent Polycarbonate Sheet

Product Details:
Place of Origin: ZHEJIANG,CHINA
Brand Name: OEM
Certification: ISO/SGS
Model Number: PC solid
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE FILM
Delivery Time: 10-15 DAYS
Payment Terms: TT; L/C
Detailed Product Description
Name: Polycarbonate Plastic Panels Advantage: Fire Resistance
Max Width: 2.1m Length: As Requested
Guarantee: 10 Years Color: Clear/opal/red/blue/yellow/bronze
High Light:

impact resistant polycarbonate sheet

,

uv blocking polycarbonate sheet

Fire Resistance Polycarbonate Plastic Panels , Translucent Polycarbonate Sheet



Polycarbonate Plastic Panels Introduction.



Polycarbonate is a transparent thermoplastic material with good strength and stiffness and outstanding impact resistance. It provides the best mechanical property and electrical insulation, high dimensional stability and excellent creep resistance. Polycarbonate's toughness and optical clarity make it ideal for a wide variety of applications. And it can be used in temperatures ranging from -130℃ to +130℃.


Polycarbonate Plastic Panels SPECIFICATION



Thickness (mm) Standard Width (mm)

Density
(Kg/m³)

Standard Length (mm) Standard Color
2





1200-2100





1.2





As requested

Clear,
Frosted,
Blue,
Lake blue,
Green,
Brown,
Opal,
Red,
Yellow

2.5
3
4
5
6
8
10
12


Technical data of PC solid sheet



CHARACTERISTICS DATA
Impact Strength 850 J/m
Light Transmission 89%-50%
UV Protection Layer 50 um
Suitable temperature -40 ~ +120
Heat Deformation Temp. 140
Heat Conductivity 2.3-2.9 W/m2
Specific Heat 1.17 KJ/KG k
Thermal Expansion Coefficient 0.065 mm/m
Bend Strength 100 N/mm2
Tensile Strength > 60 N/mm2
Tensile Force of Breaking > 65 N/mm2
Modulus of Elasticity 2400 MPa



Effect of soundproof of pc compact sheets:

Thickness (mm) Soundproof Index (dB)
4 27
5 28
6 29
8 31
10 32
12 34


Min. Bend Radius solid polycarbonate sheets:

Thickness (mm) Min. Bend Radius (mm)
3 450
4 600
5 750
6 900
8 1200



Features of anti-scratch PC solid sheets:

  • Appearance is more nice
  • Much better optical properties
  • Very high impact strength
  • UV protection and Anti-aging
  • Good weather resistance

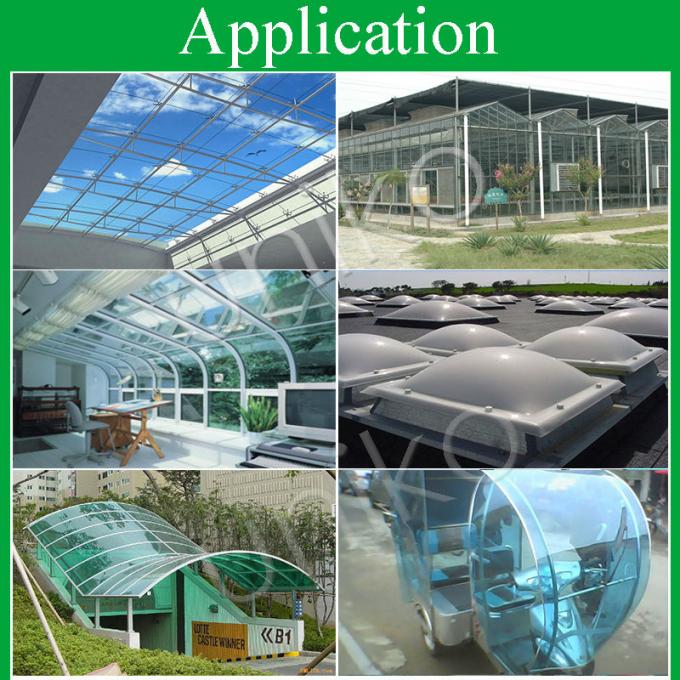

Application of Polycarbonate Sheet

1) Roofing for greenhouse, swimming pool, shopping malls, commercial streets.
2) Sunshade for stadiums and bus stops, gazebo, open air carport.
3) Lighting canopy for corridors, passages and subway entries.
4) ATM machine covers, telephone booth, gateways, garages.
5) Sound and heat insulation wall for expressways and houses.
6) Instead of glass, decoration door, curtain wall.
7) Soundproof material for partitions.
